Cari potongan secara automatik

Langkah 1: Petakan

Cipta Circuit dan observable

# Added by doQumentation — installs the packages this notebook needs if they are missing
import importlib.util

_needed = {"numpy": "numpy", "qiskit": "qiskit", "qiskit_addon_cutting": "qiskit-addon-cutting"}
_missing = [pip for module, pip in _needed.items()
            if importlib.util.find_spec(module) is None]
# One at a time, so a package that fails to install does not block the others
for _pip in _missing:
    %pip install -q {_pip}
if not _missing:
    print("\u2713 All required packages are installed")

import numpy as np
from qiskit.circuit.random import random_circuit
from qiskit.quantum_info import SparsePauliOp

circuit = random_circuit(7, 6, max_operands=2, seed=1242)
observable = SparsePauliOp(["ZIIIIII", "IIIZIII", "IIIIIIZ"])

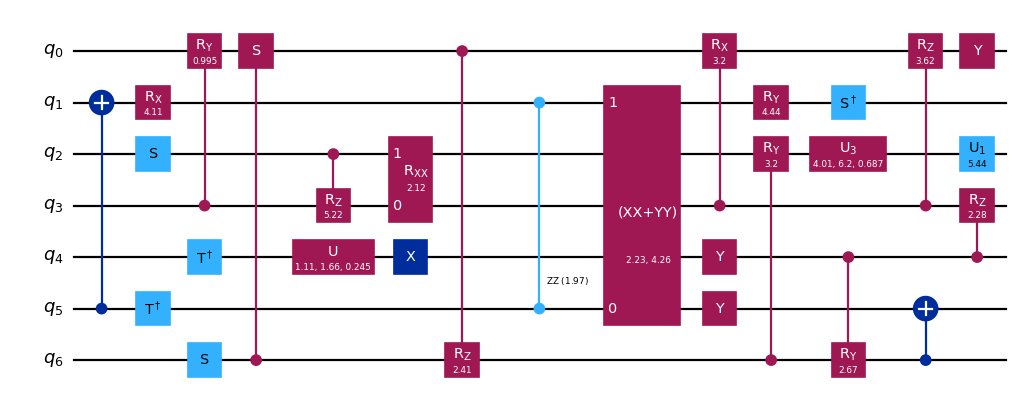

circuit.draw("mpl", scale=0.8)

Langkah 2: Optimumkan

Cari lokasi potongan, dengan had maksimum 4 qubit setiap subCircuit. Circuit ini boleh dipisahkan kepada dua dengan membuat satu potongan wayar dan memotong satu CRZGate

from qiskit_addon_cutting.automated_cut_finding import (
    find_cuts,
    OptimizationParameters,
    DeviceConstraints,
)

# Specify settings for the cut-finding optimizer
optimization_settings = OptimizationParameters(seed=111)

# Specify the size of the QPUs available
device_constraints = DeviceConstraints(qubits_per_subcircuit=4)

cut_circuit, metadata = find_cuts(circuit, optimization_settings, device_constraints)
print(
    f'Found solution using {len(metadata["cuts"])} cuts with a sampling '
    f'overhead of {metadata["sampling_overhead"]}.\n'
    f'Lowest cost solution found: {metadata["minimum_reached"]}.'
)
for cut in metadata["cuts"]:
    print(f"{cut[0]} at circuit instruction index {cut[1]}")

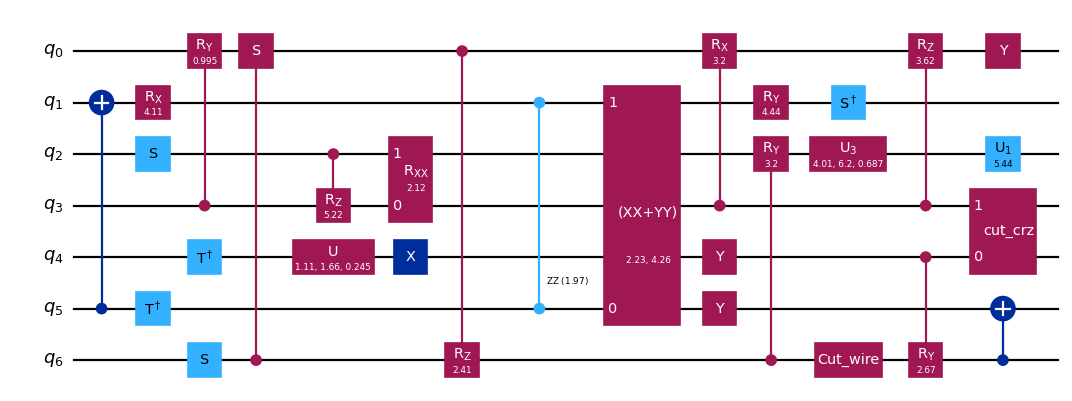

cut_circuit.draw("mpl", scale=0.8, fold=-1)

Found solution using 2 cuts with a sampling overhead of 127.06026169907257.
Lowest cost solution found: True.
Wire Cut at circuit instruction index 19
Gate Cut at circuit instruction index 28

Tambah ancilla untuk potongan wayar dan kembangkan observable bagi mengambil kira qubit ancilla

from qiskit_addon_cutting import cut_wires, expand_observables

qc_w_ancilla = cut_wires(cut_circuit)
observables_expanded = expand_observables(observable.paulis, circuit, qc_w_ancilla)

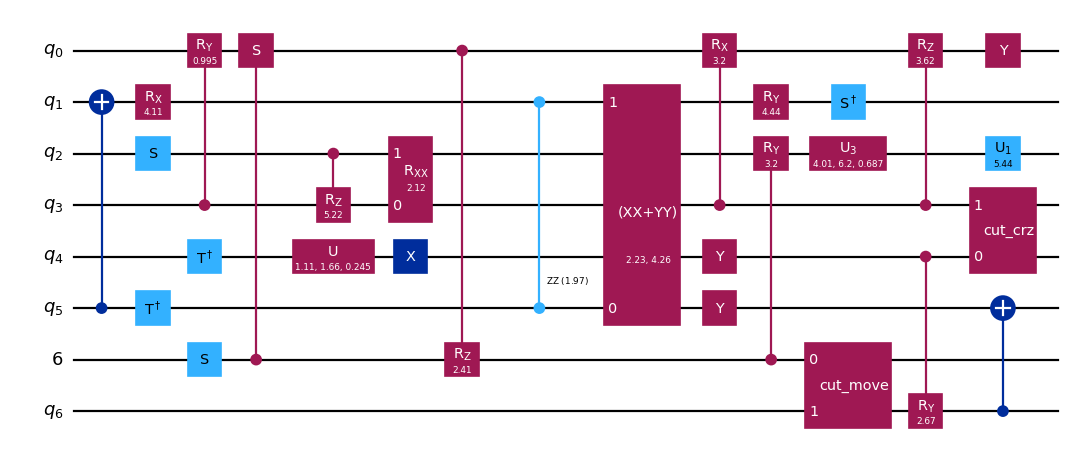

qc_w_ancilla.draw("mpl", scale=0.8, fold=-1)

Bahagikan Circuit dan observable kepada subCircuit dan subobservable. Kira overhed pensampelan yang dikenakan daripada memotong gate dan wayar ini.

from qiskit_addon_cutting import partition_problem

partitioned_problem = partition_problem(
    circuit=qc_w_ancilla, observables=observables_expanded
)
subcircuits = partitioned_problem.subcircuits
subobservables = partitioned_problem.subobservables
print(
    f"Sampling overhead: {np.prod([basis.overhead for basis in partitioned_problem.bases])}"
)

Sampling overhead: 127.06026169907257

subobservables

{0: PauliList(['IIII', 'IZII', 'IIIZ']),
 1: PauliList(['ZIII', 'IIII', 'IIII'])}

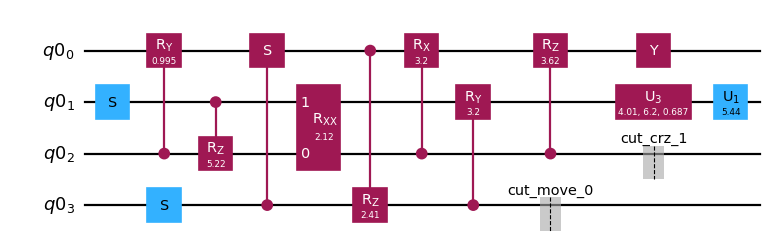

subcircuits[0].draw("mpl", style="iqp", scale=0.8)

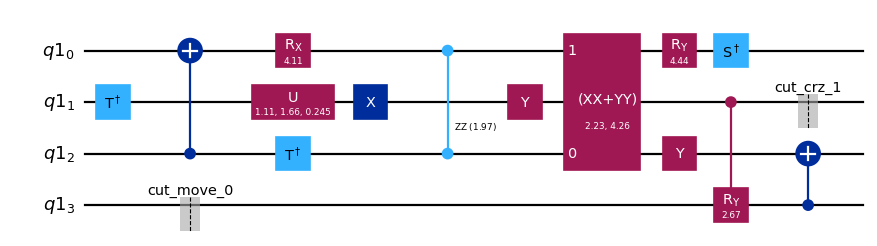

subcircuits[1].draw("mpl", style="iqp", scale=0.8)

Jana eksperimen untuk dijalankan pada Backend.

from qiskit_addon_cutting import generate_cutting_experiments

subexperiments, coefficients = generate_cutting_experiments(
    circuits=subcircuits, observables=subobservables, num_samples=1_000
)
print(
    f"{len(subexperiments[0]) + len(subexperiments[1])} total subexperiments to run on backend."
)

96 total subexperiments to run on backend.

Langkah 3 dan 4 daripada corak Qiskit boleh dilakukan seperti dalam tutorial sebelumnya.
